VIDEO SEVEN

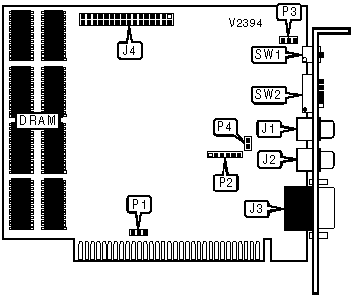

V7 VEGA (SHORT CARD)

Card Type

Video card

Video Processor

Video Seven

Maximum Onboard Memory

256KB DRAM

I/O Options

Feature connector, light pen port

Data Bus

8-bit ISA

Video Types Supported

EGA

Highest Resolution Supported

640 x 350

CONNECTIONS

Function

Label

Function

Label

Unidentified

J1

Feature connector

J4

Unidentified

J2

Light pen port

P2

9-pin EGA port

J3





USER CONFIGURABLE SETTINGS

Setting

Label

Position

Base I/O address set to 3D0h

P3

Pins 1 & 2 closed



Base I/O address set to 2D0h

P3

Pins 2 & 3 closed

Factory configured - do not alter

P4

Unidentified

Card is installed in normal slot

P6

Pins 2 & 3 closed



Card is installed in XT slot 8

P6

Pins 1 & 2 closed

Card will emulate CGA and MDA modes as necessary

SW2/5

On



Card is 100% EGA compatible

SW2/5

Off

MONITOR TYPE (EGA PRIMARY)

Primary

Secondary

SW1

SW2/1

SW2/2

SW2/3

SW2/4

CGA, 40 x 25

Monochrome

Off

On

Off

Off

On

CGA, 80 x 25

Monochrome

Off

Off

Off

Off

On

EGA, 40 x 25

Monochrome

On

On

On

On

Off

EGA, 80 x 25

Monochrome

On

Off

On

On

Off

Monochrome

CGA, 40 x 25

Off

On

Off

On

Off

Monochrome

CGA, 80 x 25

Off

Off

Off

On

Off

MONITOR TYPE (EGA SECONDARY)

Primary

Secondary

SW1

SW2/1

SW2/2

SW2/3

SW2/4

Monochrome

CGA, 40 x 25

Off

On

On

On

On

Monochrome

CGA, 80 x 25

Off

Off

On

On

On

Monochrome

EGA, 40 x 25

On

On

Off

On

On

Monochrome

EGA, 80 x 25

On

Off

Off

On

On

CGA, 40 x 25

Monochrome

Off

On

On

Off

On

CGA, 80 x 25

Monochrome

Off

Off

On

Off

Off
