WESTERN DIGITAL CORPORATION

PARADISE VGA PLUS 16

Category

Video

Video Types Supported

VGA

Video Processor

WD PVGA1A

Highest Resolution Supported

800 x 600

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

256KB

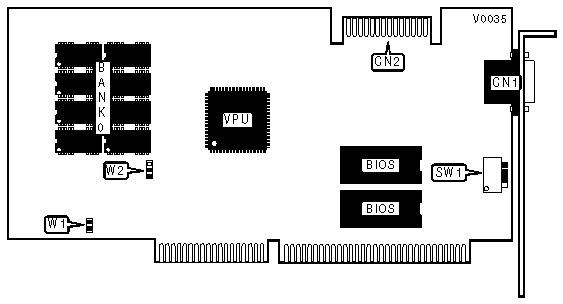

CONNECTIONS

Purpose

Location

Location

Purpose

15-pin analog video port

CN1

VGA feature connector

CN2

FACTORY CONFIGURED - DO NOT ALTER

Jumper/Switch

Position

W2

Pins 1 & 2 closed

SW1/3

Off

MANUAL 16-BIT BIOS CONFIGURATION

Setting

W1

Initial setup and normal operation

Closed

Note:W1 should remain in the closed position unless the 16TEST program has been run and it recommends removing the jumper.

DISPLAY TIMING SELECTION

Timing

SW1/1

Standard PS/2 compatible display timing

Off



Special multi-frequency display timing

On

VGA MODE SWITCHING CONFIGURATION

Mode

SW1/2

PS/2 style

On



PC/AT style

Off

AUTOSENSE SELECTION

Mode

SW1/4

Autosense for 16-bit BIOS enabled

On



Autosense disabled, force 8-bit BIOS

Off
