WESTERN DIGITAL CORPORATION

PARADISE ACCELERATOR 24

Category

Video

Video Types Supported

XVGA

Video Processor

WD90C31

Highest Resolution Supported

1280 X 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1024KB

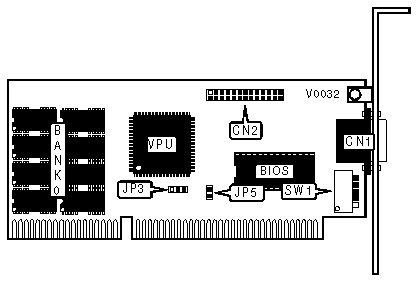

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA Feature connector

CN2

ADDRESS LATCH CONFIGURATION

Setting

JP3

Address latch line tied to VCC enabled

Pins 1 & 2 closed



Address latch line tied to bus enabled

Pins 2 & 3 closed

ZERO WAIT STATE SELECTION

Setting

JP5

Enabled

Closed



Disabled

Open

800 X 600 REFRESH RATE SELECTION

Rate

SW1/1

SW1/2

56.5Hz

Off

Off

72.1Hz

On

Off

60.5Hz

Off

On

56.5Hz

On

On

1024 X 768 REFRESH RATE CONFIGURATION

Rate

Mode

SW1/3

SW1/4

86.7Hz

Interlaced

Off

Off

70.2Hz

Non-Interlaced

On

Off

60.2Hz

Non-Interlaced

Off

On

72.3Hz

Non-Interlaced

On

On

FONT SELECTION

Font

SW1/5

Standard Fonts

Off



TUV Fonts

On

Note: TUV is the German standard for character spacing, and may not be compatible with some DOS applications.
