STB SYSTEMS, INC.

VELOCITY 64V VL

Category

Video

Video Types Supported

XVGA

Video Processor

S3 Vision968

Highest Resolution Supported

1600 x 1200

Data Bus Type

32-bit VESA Local Bus

Memory Type

VRAM

Maximum Onboard Memory

2MB (Expandable to 4MB)

CONNECTIONS

Purpose

Location

Purpose

Location

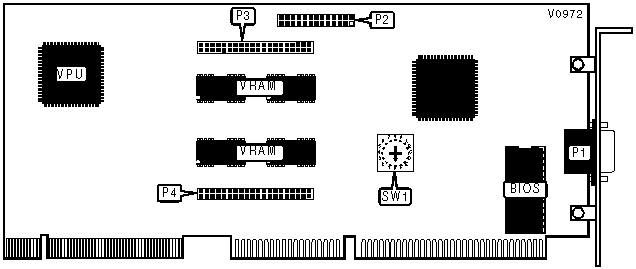

15-pin analog video port

P1

Expansion memory connector

P3

VGA feature connector

P2

Expansion memory connector

P4

FACTORY CONFIGURED - DO NOT ALTER

Switch

Position

SW1

0
