MEDIA VISION TECHNOLOGY, INC.

PRO GRAPHICS 1024 VESA

Category

Video

Video Types Supported

XVGA

Video Processor

Media Vision

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

VRAM

Maximum Onboard Memory

2.25MB

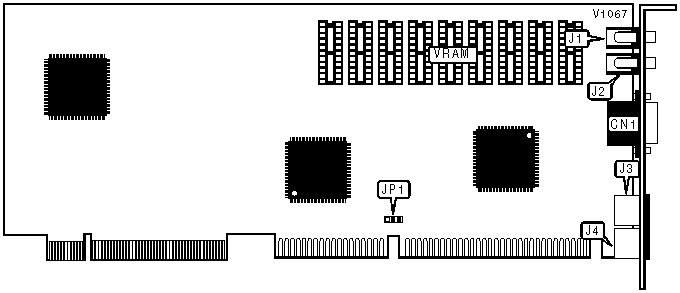

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

S-video connector

J3

Composite video in

J1

S-video connector

J4

Composite video out

J2



ON BOARD VGA CONFIGURATION

Setting

JP1

Enabled

Pins 1 & 2 closed



Disabled

Pins 2 & 3 closed

MISCELLANEOUS TECNICAL NOTE

Note: Exact VRAM configuration is unidentified.
