INFORMTECH INTERNATIONAL, INC.

ITVGAX VER. 2.0

Category

Video

Video Types Supported

XVGA

Video Processor

Realtek

Highest Resolution Supported

1280x1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

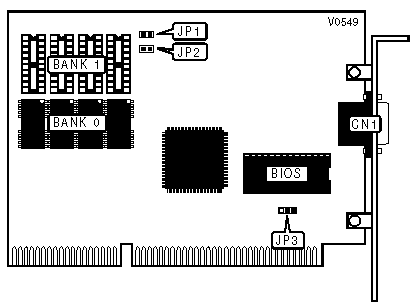

CONNECTIONS

Purpose

Location

15 pin analog video port

CN1

INTERLACED/NON-INTERLACED MODE SELECT

Mode

JP1

Interlaced

Open



Non-interlaced

Closed

ADDRESS DECODE CONFIGURATION

Setting

JP2

Unlatched

Open



Latched

Closed

INTERRUPT SELECT

IRQ

JP3

IRQ9

Pins 1 & 2 closed



IRQ7

Pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

512KB

(4) 256K x 4

NONE

1MB

(4) 256K x 4

(4) 256K x 4
