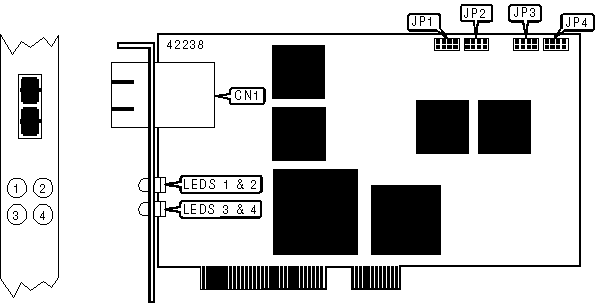

INTERPHASE CORPORATION

5511 PCI FDDI ADAPTER (SAS SC DUPLEX PB05511-000)

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Unidentified

Network Transfer Rate

100Mbps

Topology

Ring, Peer-Peer

Wiring Type

Fiber optic cable

Data Bus

32-bit PCI

CONNECTIONS

Function

Label

Fiber optic connector - SC

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter.

JP1

Unidentified

Factory configured - do not alter.

JP2

Unidentified

Factory configured - do not alter.

JP3

Unidentified

Factory configured - do not alter.

JP4

Unidentified

DIAGNOSTIC LED(S) CONTINUED

LED1

LED2

LED3

LED4

Condition

On

Off

On

Blinking

Power-on diagnostics

On

Off

Blinking

Off

Connecting to ring

On

Off

Blinking

On

Ring connected

On

On

Off

Off

Adapter Failure
