INVISIBLE SOFTWARE, INC.
ETHERNET 2000A VER 3.1
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

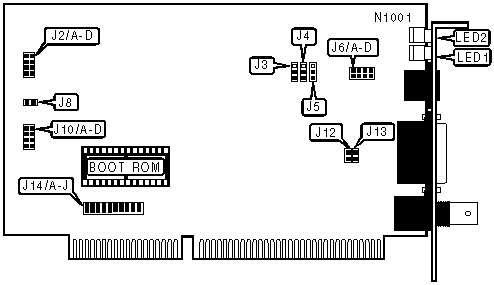

BASE I/O ADDRESS SELECTION |
|||||
|
Address |
J2/A |
J2/B |
J2/C |
J2/D |
|
|
» |
300h |
Closed |
Closed |
Closed |
Closed |
|
200h |
Open |
Closed |
Closed |
Closed |
|
|
220h |
Open |
Closed |
Closed |
Open |
|
|
240h |
Open |
Closed |
Open |
Closed |
|
|
260h |
Open |
Closed |
Open |
Open |
|
|
280h |
Open |
Open |
Closed |
Closed |
|
|
2A0h |
Open |
Open |
Closed |
Open |
|
|
2C0h |
Open |
Open |
Open |
Closed |
|
|
320h |
Closed |
Closed |
Closed |
Open |
|
|
340h |
Closed |
Closed |
Open |
Closed |
|
|
360h |
Closed |
Closed |
Open |
Open |
|
|
380h |
Closed |
Open |
Closed |
Closed |
|
|
INTERRUPT SELECTION |
|||||||||||
|
IRQ |
J14/A |
J14/B |
J14/C |
J14/D |
J14/E |
J14/F |
J14/G |
J14/H |
J14/I |
J14/J |
|
|
» |
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
2 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
5 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
11 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
12 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
14 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
BOOT ROM CONFIGURATION |
||
|
Setting |
J10/D |
|
|
» |
Disabled |
Open |
|
Enabled |
Closed |
|
|
ROM ADDRESS |
||||
|
Address |
J10/A |
J10/B |
J10/C |
|
|
» |
D000h |
Closed |
Open |
Open |
|
C000h |
Open |
Open |
Open |
|
|
C400h |
Open |
Open |
Closed |
|
|
C800h |
Open |
Closed |
Open |
|
|
CC00h |
Open |
Closed |
Closed |
|
|
D400h |
Closed |
Open |
Closed |
|
|
D800h |
Closed |
Closed |
Open |
|
|
DC00h |
Closed |
Closed |
Closed |
|
|
CABLE TYPE SELECTION |
||||||
|
Cable Type |
J6/A |
J6/B |
J6/C |
J6/D |
J12 |
J13 |
|
BNC |
Open |
Open |
Open |
Open |
Closed |
Open |
|
AUI |
Open |
Open |
Open |
Open |
Open |
Closed |
|
UTP |
Closed |
Closed |
Closed |
Closed |
Open |
Open |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Network connection is good |
|
LED1 |
Yellow |
Off |
Network connection is broken |
|
LED2 |
Green |
Blinking |
Data is being transmitted/received |
|
LED2 |
Green |
Off |
Data is not being transmitted/received |
|
BUS COMPATABILITY |
||
|
Setting |
J8 |
|
|
» |
Normal AT bus timing |
Open |
|
|
Alternative bus timing |
Closed |
|
FACTORY CONFIGURED SETTINGS -DO NOT ALTER |
|
|
Jumper |
Setting |
|
J3 |
Pins 1 & 2 closed |
|
J4 |
Pins 1 & 2 closed |
|
J5 |
Pins 2 & 3 closed |
|
MISCELLANEOUS NOTES |
|
Note: Bar code on back of card reads, "2000A031xxxxxxxxxxx". |
