TOTEM TECHNOLOGY CO., LTD.

TM-586 IP2

Device Type

Mainboard

Processor

CX 6X86/CX 686MX/AM K5/AM K6/Pentium/Pentium MMX

Processor Speed

75/90/100/120/133/150/166/180/200/233MHz

Chip Set

Intel 430TX

Maximum Onboard Memory

512MB (EDO supported)

Cache

256/512KB

BIOS

Award

Dimensions

280mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, cache slot

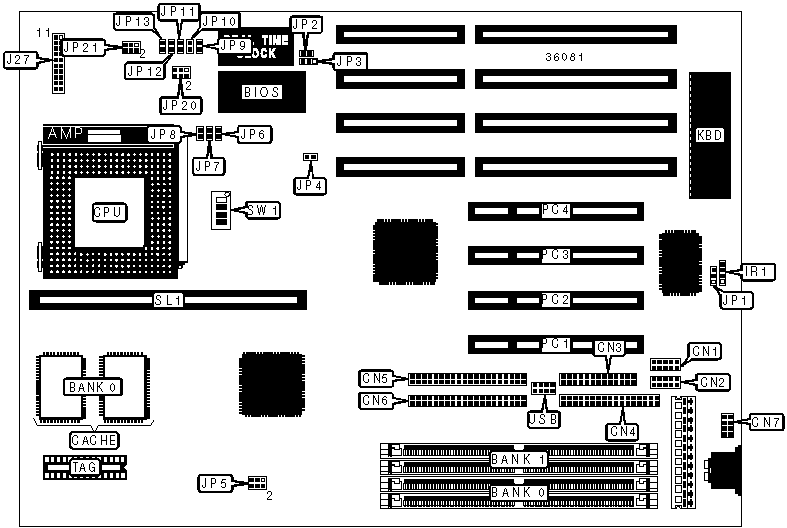

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

CN1

Power LED & keylock

J27/pins 6 - 10

Serial port 1

CN2

IDE interface LED

J27/pins 11 & 12

Parallel port

CN3

Green PC LED

J27/pins 14 & 15

Floppy drive interface

CN4

Soft off power supply

J27/pins 16 & 17

IDE interface 2

CN5

Reset switch

J27/pins 19 & 20

IDE interface 1

CN6

32-bit PCI slots

PC1 - PC4

PS/2 mouse interface

CN7

Cache slot

SL1

IR connector

IR1

USB connector

USB

Speaker

J27/pins 1 - 4





USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

JP1

Open

CMOS memory normal operation

JP2

Open



CMOS memory clear

JP2

Closed

Factory configured - do not alter

JP3

Pins 1 & 2 closed

Factory configured - do not alter

JP4

Open

Factory configured - do not alter

JP6

Closed

Factory configured - do not alter

JP7

Closed

Factory configured - do not alter

JP8

Closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

SIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

256MB

(2) 16M x 36

(2) 16M x 36

256MB

(2) 32M x 36

None

264MB

(2) 32M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Size

Bank 0

SL1

TAG

256KB

(2) 32K x 32

Not installed

Unidentified

256KB

None

256KB module installed

Unidentified

512KB

(2) 64K x 32

Not installed

Unidentified

512KB

None

512KB module installed

Unidentified

CACHE JUMPER CONFIGURATION

Size

JP9

JP10

JP11

JP12

JP13

256KB

Open

Open

Open

Closed

Open

512KB

Open

Closed

Closed

Open

Closed

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

120MHz

50MHz

2x

On

On

On

Off

150MHz

60MHz

2x

On

Off

On

Off

166MHz

66MHz

2x

Off

On

On

Off

CPU SPEED SELECTION (AM 5K86)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

75MHz

50MHz

1.5x

On

On

Off

Off

90MHz

60MHz

1.5x

On

Off

Off

Off

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

75MHz

50MHz

1.5x

On

On

Off

Off

90MHz

60MHz

1.5x

On

Off

Off

Off

100MHz

66MHz

1.5x

Off

On

Off

Off

120MHz

60MHz

2x

On

Off

On

Off

133MHz

66MHz

2x

Off

On

On

Off

166MHz

66MHz

2.5x

Off

On

On

On

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

75MHz

50MHz

1.5x

On

On

Off

Off

90MHz

60MHz

1.5x

On

Off

Off

Off

100MHz

66MHz

1.5x

Off

On

Off

Off

120MHz

60MHz

2x

On

Off

On

Off

133MHz

66MHz

2x

Off

On

On

Off

150MHz

60MHz

2.5x

On

Off

On

Off

166MHz

66MHz

2.5x

Off

On

On

On

180MHz

60MHz

3x

On

Off

Off

On

200MHz

66MHz

3x

Off

On

Off

On

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

166MHz

66MHz

2.5x

Off

On

On

On

200MHz

66MHz

3x

Off

On

Off

On

233MHz

66MHz

3.5x

Off

On

Off

Off

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP5

JP20

JP21

3.3v

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2, 3 & 4, 5 & 6 closed

3.45v

Pins 3 & 4 closed

Pins 3 & 4 closed

Pins 1 & 2, 3 & 4, 5 & 6 closed

3.6v

Pins 5 & 6 closed

Pins 5 & 6 closed

Pins 1 & 2, 3 & 4, 5 & 6 closed

CPU VOLTAGE SELECTION (DUAL)

Voltage

V core

JP5

JP20

JP21

3.3v

2.8v

Pins 1 & 2 closed

Pins 5 & 6 closed

Open
