TRENTON TECHNOLOGY, INC.

TR-P5PCI

Processor

Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

256MB

Maximum Video Memory

None

Cache

256KB

BIOS

Unidentified

Dimensions

Unidentified

I/O Options

Floppy drive interface, IDE interface, SCSI interface, parallel port, serial ports (2), combo I/O connector

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

P2

Parallel port

P8

Floppy drive interface

P3

Chassis fan power

P9

Auxiliary keyboard connector

P4

Reset switch

P10

Speaker

P5

IDE interface

P11

Combo I/O connector

P5A

IDE interface LED

P12

Serial port 1

P6

SCSI interface

P13

Serial port 2

P7

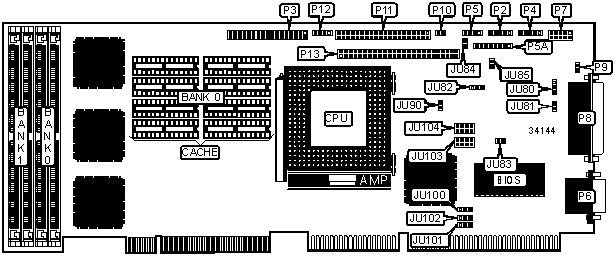

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Monitor type select color

JU80

Pins 1 & 2 closed



Monitor type select monochrome

JU80

Pins 2 & 3 closed

»

Password normal operation

JU81

Open



Password clear

JU81

Closed

»

Watchdog timer reset

JU82

Pins 1 & 2 closed



Watchdog timer normal operation

JU82

Pins 2 & 3 closed

»

CMOS memory normal operation

JU83

Open



CMOS memory clear

JU83

Closed

»

Speaker data to pin 8 of P5A enabled

JU84

Closed



Speaker data to pin 8 of P5A disabled

JU84

Open

»

Reset data to pin 1 of P5A enabled

JU85

Closed



Reset data to pin 1 of P5A disabled

JU85

Open

»

IDE IOCHRDY installed

JU90

Closed



IDE IOCHRDY not installed

JU90

Open

»

Serial port 1 IRQ select IRQ4

JU100

Pins 2 & 3 closed



Serial port 1 IRQ select IRQ3

JU100

Pins 1 & 2 closed

»

Serial port 2 IRQ select IRQ3

JU101

Pins 1 & 2 closed



Serial port 2 IRQ select IRQ4

JU101

Pins 2 & 3 closed

»

Parallel port IRQ select IRQ7

JU102

Pins 1 & 2 closed



Parallel port IRQ select IRQ5

JU102

Pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Size

Bank 0

256KB

(8) 32K x 8

DMA CHANNEL SELECTION

Channel

JU103

JU104

3

Pins 7 & 8 closed

Pins 7 & 8 closed

5

Pins 5 & 6 closed

Pins 5 & 6 closed

6

Pins 3 & 4 closed

Pins 3 & 4 closed

7

Pins 1 & 2 closed

Pins 1 & 2 closed
