ANIX TECHNOLOGY CORPORATION

128KB Cache 486 25MHz

Processor

80486SX

Processor Speed

25MHz

Chip Set

OPTI

Max. Onboard DRAM

16MB

SRAM Cache

128KB (Factory configured)

BIOS

AMI

Dimensions

355.6mm x 304mm

I/O Options

None

NPU Options

4167

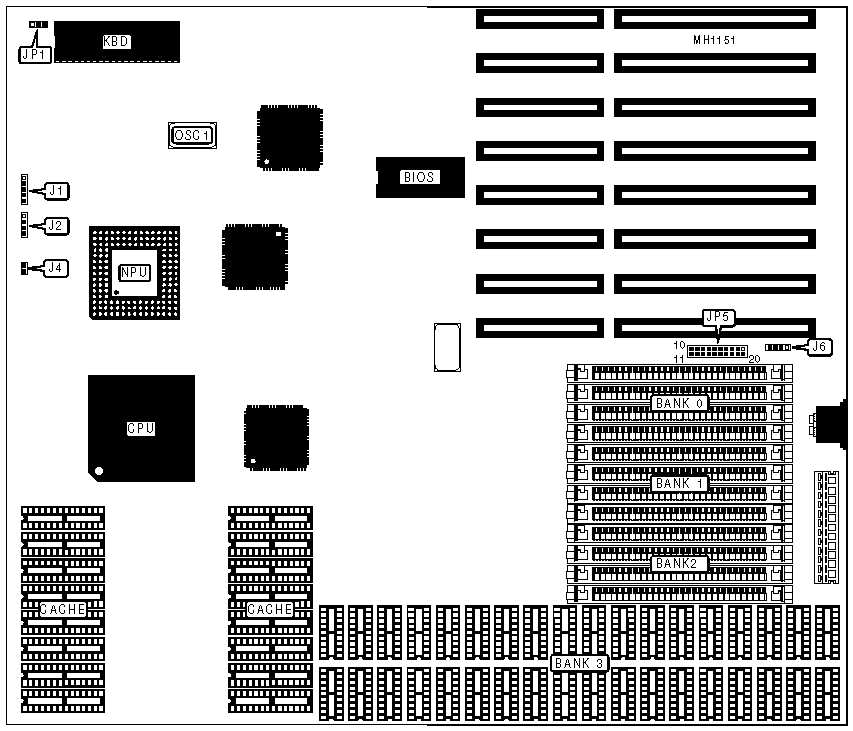

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

J1

Reset switch

J4

Speaker

J2

External battery

J6

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

Monitor type select monochrome

JP1

pins 2 & 3 closed



Monitor type select color

JP1

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB 1

(4) 256K x 9

NONE

NONE

NONE

2MB 1

(4) 256K x 9

(4) 256K x 9

NONE

NONE

3MB 1

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

NONE

4MB 1

(4) 1M x 9

NONE

NONE

NONE

4MB 2

NONE

NONE

NONE

(36) 411000

5MB 1

(4) 256K x 9

(4) 1M x 9

NONE

NONE

5MB 1

(4) 1M x 9

(4) 256K x 9

NONE

NONE

6MB 1

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

NONE

6MB 1

(4) 256K x 9

(4) 1M x 9

(4) 256K x 9

NONE

6MB 1

(4) 1M x 9

(4) 256K x 9

(4) 256K x 9

NONE

7MB 2

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

(36) 411000

8MB 1

(4) 1M x 9

(4) 1M x 9

NONE

NONE

9MB 1

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

NONE

9MB 1

(4) 1M x 9

(4) 1M x 9

(4) 256K x 9

NONE

9MB 1

(4) 1M x 9

(4) 256K x 9

(4) 1M x 9

NONE

10MB 1

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

(36) 411000

10MB 2

(4) 1M x 9

(4) 256K x 9

(4) 256K x 9

(36) 411000

10MB 2

(4) 256K x 9

(4) 1M x 9

(4) 256K x 9

(36) 411000

12MB 1

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

NONE

13MB 1

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

(36) 411000

13MB 2

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

(36) 411000

13MB 1

(4) 1M x 9

(4) 256K x 9

(4) 1M x 9

(36) 411000

16MB 1

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(36) 411000

16MB 2

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(36) 411000

Note 1 :Set JP12 pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12, 13 & 14, 15 & 16 etc., closed.

Note 2 :Set JP12 pins 1 & 20, 2 & 19, 3 & 18, 4 & 17, 5 & 16, 6 & 15, 7 & 14, 8 & 13 etc., closed.
