PROLINK COMPUTER, INC.

PV-CL5465A+ W/FM, PV-CL5465P+ W/FM

Card Type

Combo TV card

Chip Set

Cirrus Logic

I/O Options

antenna in (2), video line in, line in, VGA connector, DTV connector, S-Video connector, line out, feature connector,

daughter board connectors (2)

Data Bus

32-bit PCI

Card Size

Half-length, full-height

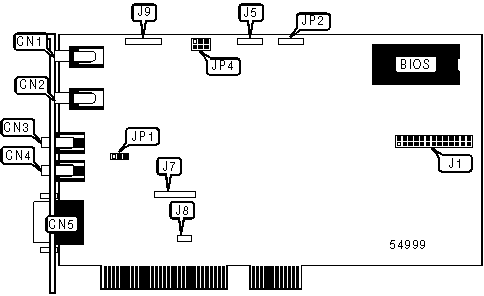

CONNECTIONS

Function

Label

Function

Label

FM antenna in

CN1

S-Video connector

J5

TV antenna in

CN2

Daughter board connector 1 (TELETXT/MTS)

J7

Video line in

CN3

Daughter board connector 1 (TELETXT/MTS)

J8

Audio line in

CN4

DTV camera connector

J9

15-pin analog video port

CN5

Audio line out

JP2

Feature connector

J1





USER CONFIGURABLE SETTINGS

Function

Label

Position

TELETXT mode

JP1

Pins 1 & 2 closed

MTS mode

JP1

Pins 2 & 3 closed

Factory configured - do not alter

JP2

Unidentified

DTV-Camera (S-Video)

JP4

Pins 1 & 2, 4 & 5 closed

DTV-Camera (Video)

JP4

Pins 2 & 3, 5 & 6 closed
