PROLINK COMPUTER, INC.

PV-CL5465A+, PV-CL5465P+

Card Type

Combo TV card

Chip Set

Cirrus Logic

I/O Options

Line out, antenna in, video line in, line in, VGA connector, DTV connector, S-Video connector, feature connector, daughter board connectors (2)

Data Bus

32-bit PCI

Card Size

Half-length, full-height

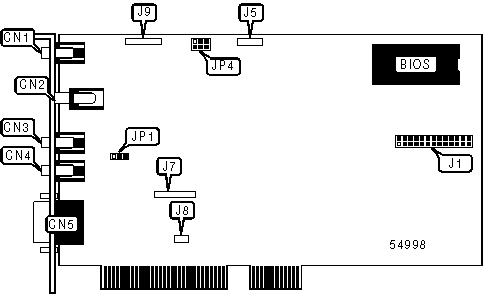

CONNECTIONS

Function

Label

Function

Label

Audio line out

CN1

Feature connector

J1

TV antenna in

CN2

S-Video connector

J5

Video line in

CN3

Daughter board connector 1 (TELETXT/MTS)

J7

Audio line in

CN4

Daughter board connector 2 (TELETXT/MTS)

J8

15-pin analog video port

CN5

DTV camera connector

J9

USER CONFIGURABLE SETTINGS

Function

Label

Position

TELETXT mode

JP1

Pins 1 & 2 closed

MTS mode

JP1

Pins 2 & 3 closed

DTV-Camera (S-Video)

JP4

Pins 1 & 2, 4 & 5 closed

DTV-Camera (Video)

JP4

Pins 2 & 3, 5 & 6 closed
