V-606 SUPER I/O, W-606 SUPER I/O CARD

Chipset

Winbond

Data Bus

16-bit ISA

Card Size

Half height, half length

Hard Drives Supported

Two IDE(AT) devices

Floppy Drives Supported

Unidentified

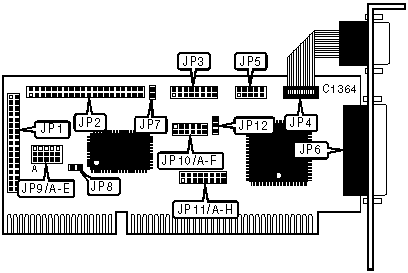

CONNECTIONS

Function

Label

Function

Label

34-pin cable connector - floppy drive

JP1

10-pin serial port 2 - internal

JP5

40-pin IDE(AT) connector

JP2

25-pin parallel port - external

JP6

16-pin game port

JP3

2-pin drive active LED

JP7

9-pin serial port 1 - external

JP4



USER CONFIGURABLE SETTINGS

Setting

Label

Position

Parallel port is unidirectional

JP8

Closed



Parallel port is bidirectional

JP8

Open

Floppy drive order is normal (A:, B:)

JP9/A

Pins 2 & 3 closed



Floppy drive order is reversed (B:, A:)

JP9/A

Pins 1 & 2 closed

Floppy address is 3F0h

JP9/B

Pins 1 & 2 closed



Floppy address is 370h

JP9/B

Pins 2 & 3 closed

IDE(AT) interface enabled

JP9/C

Pins 2 & 3 closed



IDE(AT) interface disabled

JP9/C

Pins 1 & 2 closed

IDE(AT) address is 3F6h

JP9/D

Pins 1 & 2 closed



IDE(AT) address is 376h

JP9/D

Pins 2 & 3 closed

Floppy interface enabled

JP9/E

Pins 2 & 3 closed



Floppy interface disabled

JP9/E

Pins 1 & 2 closed

Game port enabled

JP12

Pins 1 & 2 closed



Game port disabled

JP12

Pins 2 & 3 closed

SERIAL PORT 1 ADDRESS SELECTION

Setting

JP10/A

JP10/B

3F8h (COM1:)

Pins 2 & 3 closed

Pins 1 & 2 closed



3E8h (COM3:)

Pins 1 & 2 closed

Pins 2 & 3 closed



2E8h (COM4:)

Pins 2 & 3 closed

Pins 2 & 3 closed



Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

SERIAL PORT 2 ADDRESS SELECTION

Setting

JP10/C

JP10/D

2F8h (COM2:)

Pins 2 & 3 closed

Pins 1 & 2 closed



3E8h (COM3:)

Pins 2 & 3 closed

Pins 2 & 3 closed



2E8h (COM4:)

Pins 1 & 2 closed

Pins 2 & 3 closed



Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

PARALLEL PORT ADDRESS SELECTION

Setting

JP10/E

JP10/F

378h

Pins 1 & 2 closed

Pins 2 & 3 closed



278h

Pins 2 & 3 closed

Pins 1 & 2 closed



3BCh

Pins 2 & 3 closed

Pins 2 & 3 closed



Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

SERIAL PORT 1 INTERRUPT SELECTION

Setting

JP11/A

JP11/B

JP11/C



IRQ3

Open

Closed

Open

IRQ4

Closed

Open

Open



IRQ5

Open

Open

Closed

SERIAL PORT 2 INTERRUPT SELECTION

Setting

JP11/D

JP11/E

JP11/F

IRQ3

Closed

Open

Open



IRQ4

Open

Closed

Open



IRQ5

Open

Open

Closed

PARALLEL PORT INTERRUPT SELECTION

Setting

JP11/G

JP11/H



IRQ5

Open

Closed

IRQ7

Closed

Open
