UNIDENTIFIED

CI-171

Data bus:

16-bit, ISA

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

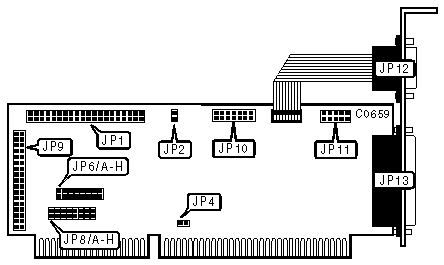

CONNECTIONS

Function

Location

40-pin IDE (AT) Interface connector

JP1

2-pin connector - drive active LED

JP2

34-pin control cable connector - floppy drive

JP9

Game port

JP10

10-pin serial port 2 - internal

JP11

9-pin serial port 1 - external

JP12

25-pin parallel port

JP13

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Parallel port is output only

JP4

Closed



Parallel port is input only

JP4

Open

Floppy drive enabled

JP6/jumper G

Closed



Floppy drive disabled

JP6/jumper G

Open

HDD enabled

JP6/jumper H

Closed



HDD enabled

JP6/jumper H

Open

SERIAL PORT 1 CONFIGURATION - JP6

COM/Address

Jumper A

Jumper B

COM1/3F8h

Closed

Open



COM3/3E8h

Closed

Closed



COM4/2E8h

Open

Closed



Disabled

Open

Open

SERIAL PORT 2 CONFIGURATION - JP6

COM/Address

Jumper C

Jumper D

COM2/2F8h

Closed

Open



COM3/3E8h

Closed

Closed



COM4/2E8h

Open

Closed



Disabled

Open

Open

SERIAL PORT 1 INTERRUPT SELECT - JP8

IRQ

Jumper A

Jumper B

Jumper C

IRQ4

Closed

Open

Open



IRQ3

Open

Closed

Open



IRQ5

Open

Open

Closed



Disabled

Open

Open

Open

SERIAL PORT 2 INTERRUPT SELECT - JP8

IRQ

Jumper D

Jumper E

Jumper F

IRQ3

Closed

Open

Open



IRQ4

Open

Closed

Open



IRQ5

Open

Open

Closed



Disabled

Open

Open

Open

PARALLEL PORT CONFIGURATION - JP6

LPT/Address

Jumper E

Jumper F

LPT2/378h

Open

Closed



LPT1/3BCh

Closed

Closed



LPT3/278h

Closed

Open



Disabled

Open

Open

PARALLEL PORT INTERRUPT SELECT - JP8

IRQ

Jumper G

Jumper H

IRQ7

Closed

Open



IRQ5

Open

Closed



Disabled

Open

Open
