VIVA COMPUTER COMPANY

H757AF

Data bus: 16-bit, ISA

Size: Half-length,half-height card

Hard drives supported: Two IDE (AT) Interface drives

Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives

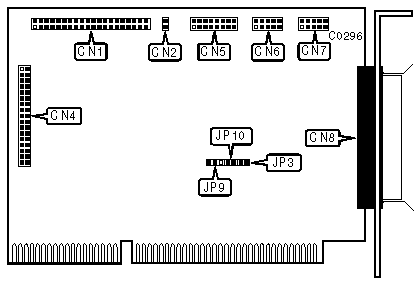

CONNECTIONS

Function

Location

34-pin data cable connector-floppy drive

CN4

16-pin connector-game port

CN5

10-pin serial port 2 connector-internal

CN6

10-pin serial port 1 connector-internal

CN7

DB-25 parallel port connector-external

CN8

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Game port enabled

JP3

closed



Game port disabled

JP3

open

Parallel port is an output device

JP9

open



Parallel port is an input device

JP9

closed

Parallel port IRQ is IRQ7

JP10

pins 1 & 2 closed



Parallel port IRQ is IRQ5

JP10

pins 2 & 3 closed
