BI-039B MATE I/O

Data bus:

16-bit, ISA

Size:

Half-length, full-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

Maximum heads/cyl.

8 heads and 1024 cylinders

Special Features

Two serial, one parallel, and one game port

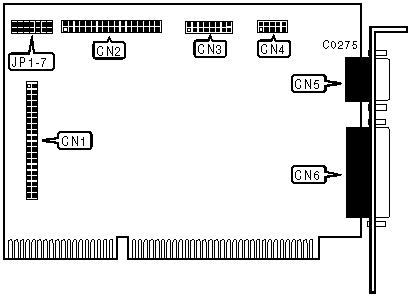

CONNECTIONS

Function

Location

40-pin AT Interface (IDE) control cable connector

CN1

34-pin control cable connector-floppy drive

CN2

16-pin game port-internal

CN3

9-pin serial port (COM2/4)-internal

CN4

9-pin serial port (COM1/3)-external

CN5

25-pin parallel port (LPT1/2)-external

CN6

USER CONFIGURABLE SETTINGS

Function

Location

Setting

COM2 enabled

JP1

closed



COM2 disabled

JP1

open

COM1 enabled

JP2

closed



COM1 disabled

JP2

open

Floppy drive enabled

JP3

closed



Floppy drive disabled

JP3

open

Hard drive enabled

JP4

closed



Hard drive disabled

JP4

open

Game port enabled

JP5

closed



Game port disabled

JP5

open

GAME PORT ADDRESS

Address

Jumper JP6

Jumper JP7

Enabled

open

open

3BCh

closed

open

378h

closed

closed

278h

open

closed
