MYLEX CORPORATION

DAC960PG

Card Type

Hard drive controller card

Maximum onboard memory

128MB

Hard Drives supported

Up to 45 SCSI devices

Floppy drives supported

None

Data Bus

32-bit PCI

Card Size

Full-length, full-height card

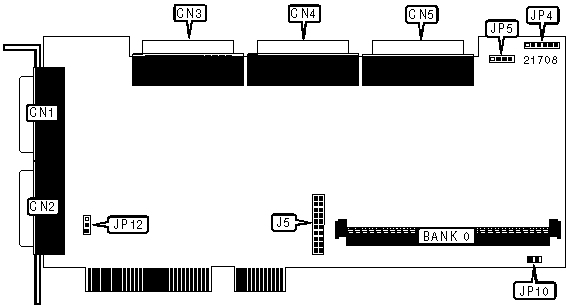

CONNECTIONS

Function

Location

Function

Location

68-pin SCSI connector channel 0 - external

CN1

68-pin SCSI connector channel 2 - internal

CN5

68-pin SCSI connector channel 1 - external

CN2

4-pin connector - drive active LED

JP4

68-pin SCSI connector channel 0 - internal

CN3

Battery backup connector

J5

68-pin SCSI connector channel 1 - internal

CN4



USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

JP5

Unidentified

Factory configured - do not alter

JP10

Open

Factory configured - do not alter

JP12

Pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

4MB

(1) 1MB x 36

8MB

(1) 2MB x 36

16MB

(1) 4MB x 36

32MB

(1) 8MB x 36

64MB

(1) 16MB x 36

128MB

(1) 32MB x 36

MISCELLANEOUS TECHNICAL NOTES

Note: If battery backup is not installed, a loopback plug must be installed.
