GDT6537RP

Card Type

Hard drive controller card

Hard Drives supported

Up to 21 SCSI devices

Floppy drives supported

None



Data Bus

32-bit PCI

Card Size

Full-length, full-height card

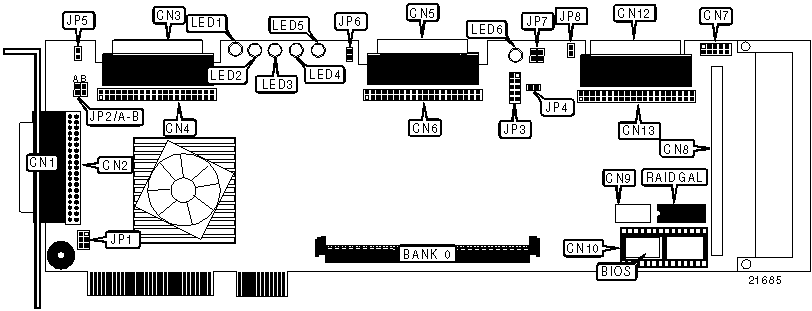

CONNECTIONS

Function

Location

Function

Location

SCSI 68-pin connector channel A - external

CN1

Feature connector B

CN8

Feature connector A

CN2

Feature socket A

CN9

SCSI 68-pin connector channel A - internal

CN3

Feature socket B

CN10

SCSI 68-pin connector channel B - internal

CN5

SCSI 68-pin connector channel C - internal

CN12

SCSI 50-pin cable connector channel B - internal

CN6

SCSI 50-pin cable connector channel C - internal

CN13

LED connector

CN7



USER CONFIGURABLE SETTINGS

Function

Label

Position



EDO SIMM installed

JP2/A

Closed



Fast Page Mode SIMM installed

JP2/A

Open

Active termination channel A enabled

JP5

Closed



Active termination channel A disabled

JP5

Open

Active termination channel B enabled

JP6

Closed



Active termination channel B disabled

JP6

Open

Factory configured - do not alter

JP1

Reserved

Factory configured - do not alter

JP2

Reserved

Factory configured - do not alter

JP3

Reserved

Factory configured - do not alter

JP4

Reserved

Factory configured - do not alter

JP7

Reserved

Active termination channel C enabled

JP8

Closed



Active termination channel C disabled

JP8

Open

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On/Blinking

SCSI channel A active

LED1

Yellow

Off

SCSI channel A idle

LED2

Yellow

On/Blinking

SCSI channel B active

LED2

Yellow

Off

SCSI channel B idle

LED3

Yellow

On/Blinking

SCSI channel C active

LED3

Yellow

Off

SCSI channel C idle

LED4

Green

On

DMA OK

LED4

Green

Off

DMA not OK

LED5

Green

On

Status OK

LED5

Green

Off

Status not OK

LED6

Unidentified

On/Blinking

SCSI channel A or B active

LED6

Unidentified

Off

SCSI channel A or B idle

CACHE CONFIGURATION

Size

BANK 0

4MB

1MB x 36

8MB

2MB x 36

16MB

4MB x 36

32MB

8MB x 36

64MB

16MB x 36
