ADAPTEC, INC.

AVA-1505

Data bus:

16-bit ISA

Size:

Half-length, full-height card

Hard drive supported:

Up to seven SCSI devices

Floppy drives supported:

None

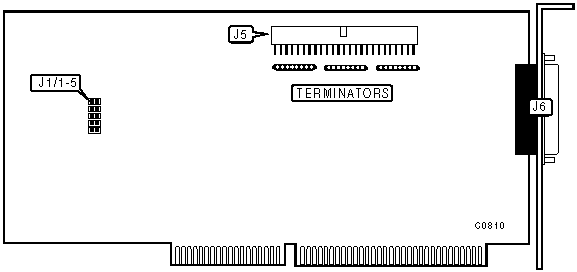

CONNECTIONS

Function

Location

50-pin SCSI connector - external

J5

50-pin SCSI connector - internal

J6

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Adapter I/O address is 340h

J1/1

open



Adapter I/O address is 140h

J1/1

closed

INTERRUPT SELECTION

IRQ

J1/2

J1/3

J1/4

J1/5

»

11

open

closed

open

open



9

open

open

open

closed



10

open

open

closed

open



12

closed

open

open

open

MISCELLANEOUS TECHNICAL NOTES

Only single-ended devices are supported.

When connecting both external & internal devices to AVA-1505 remove terminators.
